Fixed Intelligent Screw Driver TTA

Torque Range：0.1-200Nm

Stable and durable performance, extended torque range, maximum torque of 200Nm, high-accuracy tightening, clamping torque control to ensure that each screw achieves the best tightening state. 7-inch large screen, programmable; real-time curve can be seen; historical data can be consulted. For the 3.5-inch screen, you can check the tightening results and switch the Pset.

Application Industry

New energy vehicles

Automotive electronics

Automotive parts

Communication

Home appliances

Medical care

Request a Quote

Product Advantages

Accuracy

6σ accuracy over the Full torque range

Accuracy test of hard& Soft connection conforms to ISO5393 standard.

Self-developed high precision algorithm control

Fast

More tightening steps

Flexibility to respond to applications with different requirements.

High-order tightening strategy

Guarantee tightening quality Optional higher order strategy: clamping torque control.

More tightening Psets

Reduce setup time between different tightening requirements.

More tightening jobs

Automatically switch between different Psets.

Intelligent

Record and monitor the data of full tightening process.

Real-time data upload

Real-time docking with MES system.

Data storage

Controller local ??????,?????? tightening Result.

Data traceability

Multiple curves are superimposed to facilitate depth analysis.

Error-proofing

Monitoring of abnormal tightening process

All-round data monitoring, timely detection of floating locks, sliding teeth,wrong and missing, gasket missing and other unqualified tightening situation.

Assembly process authority management

In the debugging interface, you need to enter the password to set the strategy and program.

Job planning and superposition protection

If Job batch is inconsistent, it is required to enter password for intervention.

Convenient

Automatically learn

Automatically recommend the reference parameter range, and quickly build the tightening strategy.

Superior human-computer interaction

Visual display shows the running state intuitively to easy operate.

Multiple startup forms

Can be airborne and handheld, Hand held optional trigger accessory for auxiliary use, On-board optional remote/IO/ bus/protocol mode is easy to operate.

Rapid expansion port

Threaded external connection, quick external connection of relevant external modules.

Multiple communication forms

TCP/IP open Protocol, extended digital I/O interface.

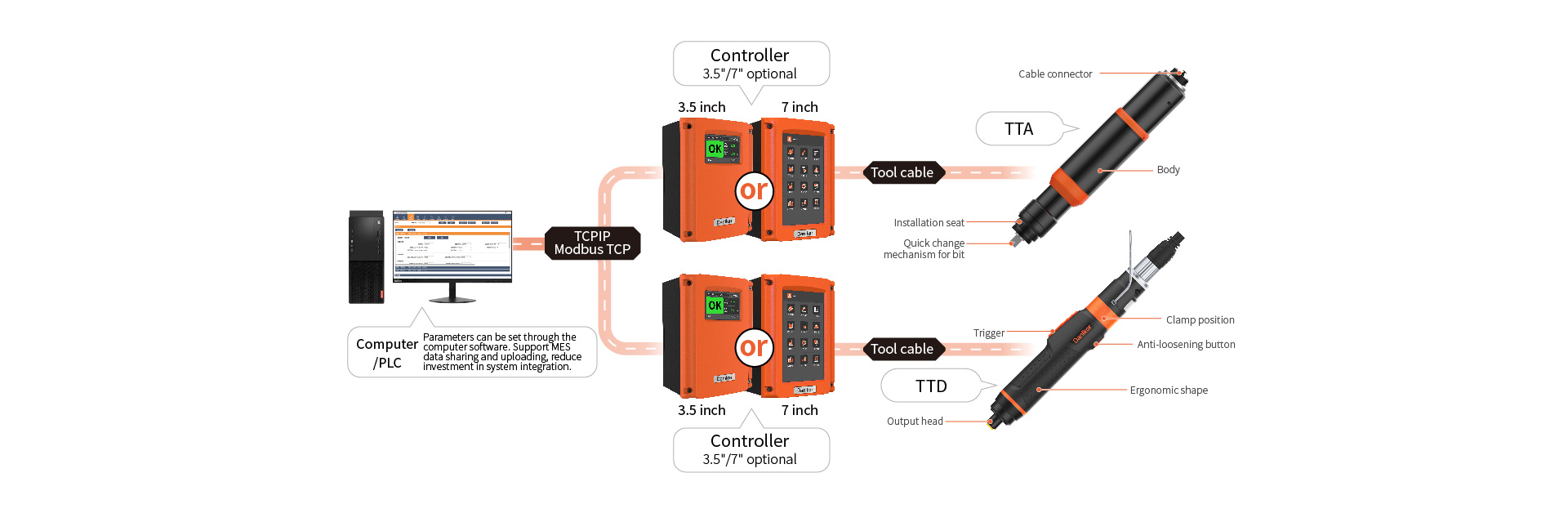

Product Structure

Product Parameters


	Model	Max torque Nm	Max Speed rpm	Weight kg	Grip diameter mm	Free range of head mm	Design Life	MTTF	Bit quick connector	Screw driver controller	Screwdriver cable
TTA	PTT-ASF-5000M-0-H10-000-B	0.1-0.5	3000	0.8	263*46	-	>10million	>1million	HEX1/4"	OPT-SCS-003-TA1-B-130W OPT-SCS-007-TA1-B-130W	Optional 5m/10 m/15m/20m Straight or Angle optional
	PTT-ASF-0014N-0-H10-000-B	0.2-1.4	3000	0.9	263*46	-
	PTT-ASF-0045N-0-H10-000-B	0.7-4.5	1800	1.1	295*46	-
	PTT-ASF-0070N-0-H10-000-B	1-7	1200	1.1	295*46	-
	PTT-ASF-0120N-0-H10-000-B	4-12	545	1.5	309*46	-
	PTT-ASF-0200N-0-S20-000-B	5-20	1870	2.7	353*65	-			S 3/8"	OPT-SCS-003-TA1-B-800W/OPT-SCS-007-TA1-B-800W
	PTT-ASF-0500N-0-S30-000-B	6-50	555	2.7	364*65	-			S1/2"	OPT-SCS-003-TA1-B-800W/OPT-SCS-007-TA1-B-800W
	PTT-ASF-0800N-0-S30-000-B	10-80	555	4	380*86	-				OPT-SCS-003-TA1-B-130W OPT-SCS-007-TA1-B-130W
	PTT-ASF-1300N-0-S30-000-B	20-130	444	4.8	400*86	-
	PTT-ASF-2000N-0-S40-000-B	30-200	293	5	407*86	-			S 3/4"
	PTT-ASF-0200N-0-S20-030-B	5-20	1870	-	448*56	30			S 3/8"	OPT-SCS-003-TA1-B-800W/OPT-SCS-007-TA1-B-800W
	PTT-ASF-0500N-0-S30-050-B	6-50	555	-	514*56	50			S 1/2"	OPT-SCS-003-TA1-B-800W/OPT-SCS-007-TA1-B-800W
	PTT-ASF-0800N-0-S30-050-B	10-80	555	-	530*86	50				OPT-SCS-003-TA1-B-1300W/OPT-SCS-007-TA1-B-1300W
	PTT-ASF-1300N-0-S30-050-B	20-130	444	-	541*86	50
	PTT-ASF-2000N-0-S40-050-B	30-200	293	-	549*86	50			S 3/4"

Releated Cases

New Energy Vehicle Industry

Integrate clean feeding technology, intelligent tightening technology, <br/>digital and intelligent software system to accompany every step of <br/>intelligent assembly upgrade of new energy vehicle industry.

Automotive?Industry

It covers the assembly application scenarios of various parts and components, and drives the intelligent assembly of automobile manufacturing industry to achieve high-quality and high-efficiency development.

Energy?Storage?Industry

Focus on the innovation of automatic feeding and intelligent tightening technology to ensure the safety and stability of energy storage products.

Communications?Industry

Through automatic assembly equipment, reduce manual intervention, ensure the accuracy of production and assembly, and improve the quality and efficiency of production and assembly of communication products.

3C?Electronics?Industry

Focus on building a "flexible intelligence +" technology innovation system to promote the intelligent transformation and upgrading of 3C electronic assembly.
