Handheld electric screwdriver TCD

Torque Range：0.02-20Nm

Danikor’s industrial electric screwdriver provides the capability to set and store torque and angle data, ensuring the accuracy of tightening. It is a DC low torque screwdriver, suitable for manual assembly lines in industrial settings.

Application Industry

New energy vehicles

Automotive electronics

Automotive parts

Communication

Home appliances

Medical care

Request a Quote

Product Advantages

Accuracy

Standard deviation accuracy over the full torque range.

Accuracy test of hard& Soft connection conforms to ISO5393 standard.

Self-developed high precision algorithm control

Fast

Flexibility to respond to applications with different requirements.

Guarantee tightening quality.

Reduce setup time between different tightening requirements.

Automatically switch between different Psets

Intelligent

Record and monitor the data of full tightening process.

Real-time data upload

Real-time docking with MES system.

Data storage

You can hold more quantities and filter the number of results that are analyzed for a given program or time period.

Data traceability

Multiple curves are superimposed to facilitate depth analysis.

Error-proofing

Monitoring of abnormal tightening process

All-round data monitoring, timely detection of floating locks, sliding teeth,wrong and missing, gasket missing and other unqualified tightening situation.

Assembly process authority management

In the debugging interface, you need to enter the password to set the strategy and program.

Job planning and superposition protection

If Job batch is inconsistent, it is required to enter password for intervention.

Convenient

Automatically learn

Automatically recommend the reference parameter range, and quickly build the tightening strategy.

Superior human-computer interaction

Visual OLED display screen,3-color light (such as NG red), buzzer and front light is convenient for operators to use.

Multiple startup forms

It can be handheld or fixed with machine, and handheld can be pressed down,triggered or remotely activated.

Rapid expansion port

Threaded external connection for quick matching vacuum suction nozzle and a fixed structure.

Multiple communication forms

RS485 RTU, TCP/IP open Protocol, extended digital I/O interface.

Multiple functions optional

Optional teaching pendant or communication module, real-time data viewing and parameter setting.

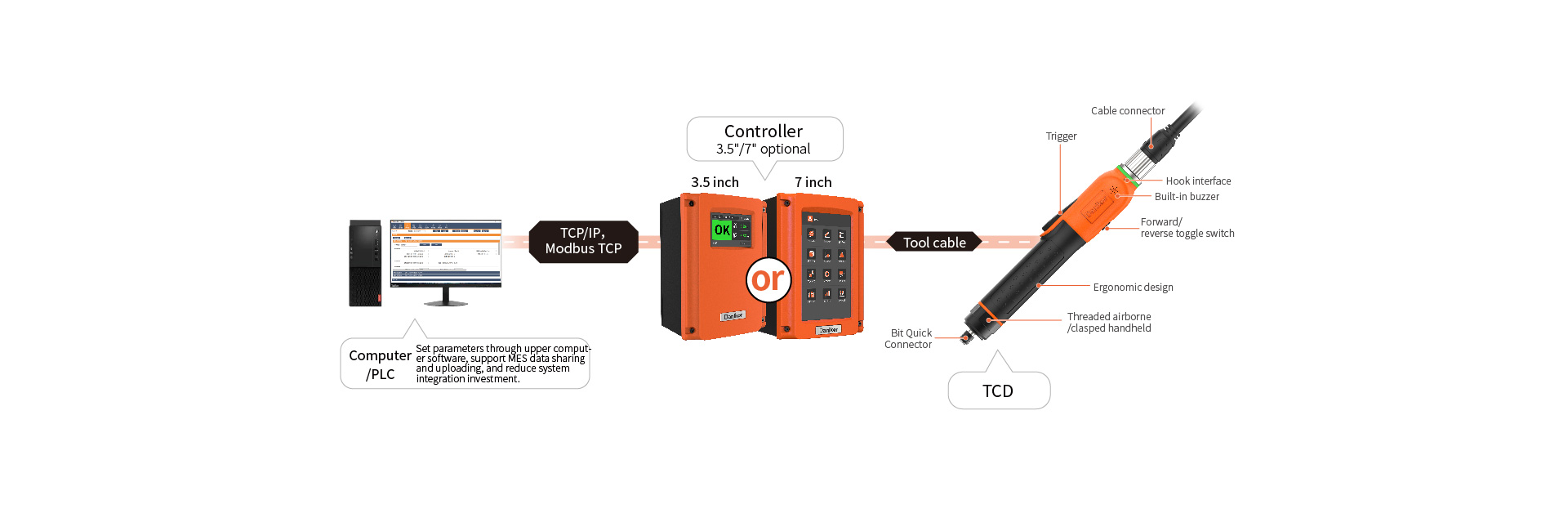

Product Structure

Product Parameters

Model	Max torque /Nm	Max speed /rpm	Grip diameter /mm	Size /mm	Weight /kg	Bit quick connector	Screw driver controller	Voltage power
PTC-DSH-1000M-33-HMP-000-B	0.02-0.1	3000	33	247.2	0.345	＞HM4	OPT-SCS-001-CD1-B3-500W OPT-SCS-007-CD1-B3-500W	500W 24V
PTC-DSH-2400M-33-HMP-000-B	0.05-0.24	3000	33	247.2	0.427	＞HM4	OPT-SCS-001-CD1-B1-500W OPT-SCS-007-CD1-B1-500W
PTC-DSH-0009N-33-H1P-000-B	0.18-0.9	3000	33	268.8	0.536	HEX1/4"	OPT-SCS-001-CD1-B1-500W OPT-SCS-007-CD1-B1-500W
PTC-DSH-0020N-33-H1P-000-B	0.4-2	1500	33	291.5	0.58		OPT-SCS-001-CD1-B2-500W OPT-SCS-007-CD1-B2-500W
PTC-DSH-0020N-40-H1P-000-B	0.4-2	3000	40	273.7	0.885
PTC-DSH-0040N-40-H1P-000-B	0.8-4	1500	40	285.7	0.963
PTC-DSH-0080N-40-H1P-000-B	2-8	960	40	290.7	1
PTC-DSH-0120N-40-H1P-000-B	4-12	700	40	290.7	0.996
PTC-DSH-0200N-40-S2P-000-B	7-20	300	40	302.2	51.098	S 3/8"
