Handheld Transducerized Screwdriver TTD&TTC

Torque Range：0.02-480Nm

Stable and durable performance, extended torque range, maximum torque of 480Nm, high-precision tightening, clamping torque, slope, rotation angle, zero-speed hold, delayed waiting, yield point, loose sleeve, repair and other tightening strategies to ensure that each screw achieves the best tightening state. 10.1-inch large screen: programmable and guided; real-time curve can be seen; historical data can be consulted; multi-layer bar code can be configured; bus; multiple tools can be connected for real-time use. At the same time, it can effectively improve the efficiency and quality of production.

Request a Quote

Product Advantages

Accuracy

6σ accuracy over the Full torque range

Accuracy test of hard& Soft connection conforms to ISO5393 standard.

Self-developed high precision algorithm control, Under the process condition of ±5%,Satisfy CMK > 1.67

Fast

More tightening steps

Flexibility to respond to applications with different requirements.

More tightening strategies

Base strategy: Torque/Angle/Torque Angle/Speed Control Higher-order strategy: Clamping torque control, torque-angle method, delay waiting,Zero speed hold, tighten to yield, tighten to torque,Synchronization node, end of tightening, repair preparation, ope

More tightening tasks

Up to 254 Pset torque programs and 254 groups of tightening tasks can be flexibly increased or decreased to meet the tightening requirements of multi-workpiece and multi-torque screws.

Graphical Task Management

Graphical guide interface, intuitively guide workers to operate according to the correct process, do a good job of fool-proof and error-proof control, support the connection of screw feeder, screwdriver, arm and other equipment.

Intelligent

Tightening Central

Different communication mode activation screwdrivers can scan code, bus, IO, modbus to activate Pset, Job, task management.

Global monitoring

Record and monitor slope/torque/ angle/step data during tightening.

Real-time data upload

Support real-time uploading of multi-station data to Web, including parameter setting of each screw and corresponding tightening result, and real-time docking with MES.

Data traceability

The tightening result of the 500000 group is a tightening curve 5000, which supports the superposition of 50 historical curves.

Analysis of results

Real-time statistics and qualification rate of Pset/Job/task management data.

Errorproofing

Monitoring of the whole tightening process

Full range of data monitoring, through torque/angle settings, timely detection of abnormal tightening problems.

Double judgment of qualified tightening

The two forms of sensor and current are superimposed to ensure that the torque is qualified.

One key to open the failure alarm

In the process of tightening, in case of abnormal conditions such as floating, sliding and repeated tightening, the monitoring mode can be opened with one key.

Assembly process authority management

Debugging interface and Job task stage, hierarchical control, need to enter the password to set the strategy and task.

Convenient

Multi-level barcode configuration

Support the binding of tightening results to the corresponding station, workpiece, Job and Pset barcodes, and standardize the control of the whole tightening process to avoid manual misoperation.

Superior human-computer interaction

The ????.??-inch touch screen can quickly set system parameters and policy programs, and visually view tightening data; Support breakpoint resume to prevent information loss.

Multiple forms of startup

Handheld and airborne, support off/bar code gun/bus/Modbus TCP/custom protocol.

Supports hot-plug applications

Cable optional 5m, 10m, 15m, 20m.

Rapid expansion port

External modules such as internal spline external connection, fast external connection, special head, offset head, open and closed head, etc.

Multiple means of communication

Bus communication (Optional), TCPIP, Modbus _TCP, Http communication protocol, extended digital, I/O interface.

Peripheral connectivity is simple

It can be flexibly connected with scanner, sleeve selector, positioning arm, screw feeder and other equipment; The SD card stores the program, and the new controller can be inserted to synchronize the information.

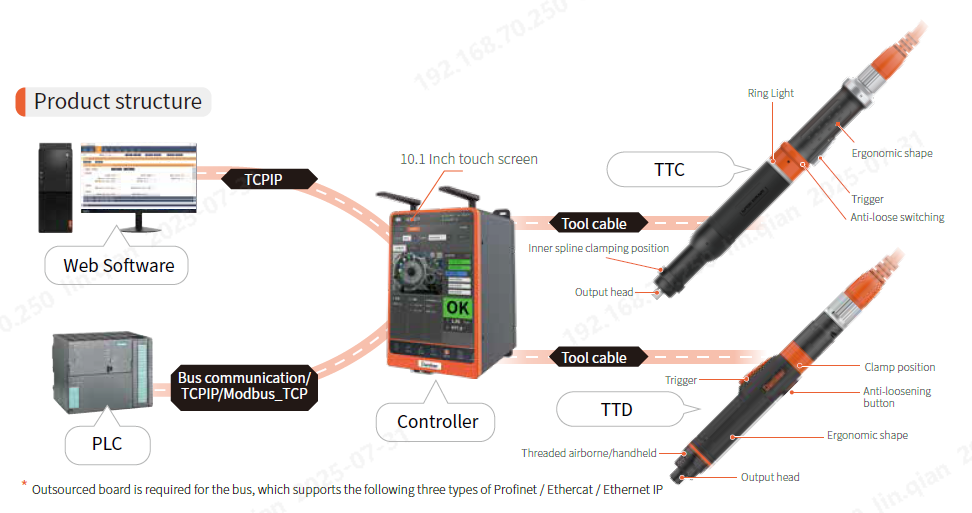

Product Structure

TTC&TTD Transducer Screwdriver Structure

Product Parameters


	Model	Max torque Nm	Max Speed rpm	Weight kg	Grip diameter mm	Design Life	MTTF	Bit quick connector	Starting mode	Screw driver controller	Screwdriver cable
TTD	PTT-DSH-1000M-35-HMP-000-B	0.02-0.1	3000	0.4	35	>10million	>1million	HM4	Pushed /Remote	Enhanced version OPT-CCK-010-TD1-B1-750W Standard version OPT-SCS-003-TD1-B1-500W OPT-SCS-007-TD1-B1-500W	Enhanced version 5m/10m Optional Standard version 5m
	PTT-DSH-2400M-35-HMP-000-B	0.24-1.2	3000	0.5	35	>10million	>1million	HM4	Pushed /Remote	Enhanced version OPT-CCK-010-TD1-B1-750W Standard version OPT-SCS-003-TD1-B1-500W OPT-SCS-007-TD1-B1-500W	Enhanced version 5m/10m Optional Standard version 5m
	PTT-DSH-7000M-35-H1P-000-B	0.4-2	3000	0.6	35	>10million	>1million	HEX1/4"	Pushed /Remote	Enhanced version OPT-CCK-010-TD1-B1-750W Standard version OPT-SCS-003-TD1-B1-500W OPT-SCS-007-TD1-B1-500W	Enhanced version 5m/10m Optional Standard version 5m
	PTT-DSH-0012N-35-H1P-000-B	0.4-2	1500	0.7	35	>10million	>1million	HEX1/4"	Pushed /Remote	Enhanced version OPT-CCK-010-TD1-B1-750W Standard version OPT-SCS-003-TD1-B1-500W OPT-SCS-007-TD1-B1-500W	Enhanced version 5m/10m Optional Standard version 5m
	PTT-DSH-0020N-35-H1P-000-B	0.8-4	980	0.7	35	>10million	>1million	HEX1/4"	Pushed /Remote	Enhanced version OPT-CCK-010-TD1-B1-750W Standard version OPT-SCS-003-TD1-B1-500W OPT-SCS-007-TD1-B1-500W	Enhanced version 5m/10m Optional Standard version 5m
	PTT-DSH-0020N-42-H1P-000-B	1.6-8	3000	0.9	42	>10million	>1million	HEX1/4"	Pushed /Remote	Enhanced version OPT-CCK-010-TD1-B1-750W Standard version OPT-SCS-003-TD1-B1-500W OPT-SCS-007-TD1-B1-500W	Enhanced version 5m/10m Optional Standard version 5m
	PTT-DSH-0040N-42-H1P-000-B	2.4-12	1640	0.9	42	>10million	>1million	HEX1/4"	Pushed /Remote	Enhanced version OPT-CCK-010-TD1-B1-750W Standard version OPT-SCS-003-TD1-B1-500W OPT-SCS-007-TD1-B1-500W	Enhanced version 5m/10m Optional Standard version 5m
	PTT-DSH-0080N-42-H1P-000-B	1.6-8	910	1	42	>10million	>1million	HEX1/4"	Pushed /Remote	Enhanced version OPT-CCK-010-TD1-B1-750W Standard version OPT-SCS-003-TD1-B1-500W OPT-SCS-007-TD1-B1-500W	Enhanced version 5m/10m Optional Standard version 5m
	PTT-DSH-0120N-42-H1P-000-B	2.4-12	670	1	42	>10million	>1million	HEX1/4"	Pushed /Remote	Enhanced version OPT-CCK-010-TD1-B1-750W Standard version OPT-SCS-003-TD1-B1-500W OPT-SCS-007-TD1-B1-500W	Enhanced version 5m/10m Optional Standard version 5m
	PTT-DSH-0200N-42-S2P-000-B	4-20	290	1.1	42	>10million	>1million	S 3/8"	Pushed /Remote	Enhanced version OPT-CCK-010-TD1-B1-750W Standard version OPT-SCS-003-TD1-B1-500W OPT-SCS-007-TD1-B1-500W	Enhanced version 5m/10m Optional Standard version 5m


	Model	Max torque Nm	Max Speed rpm	Weight kg	Grip diameter mm	Design Life	MTTF	Bit quick connector	Starting mode	Screw driver controller	Screwdriver cable
TTC	PTT-CSH-0200N-38-S2P-000-B	4-20	1749	2.3	38	>10million	>1million	S 3/8"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-0350N-38-S3P-000-B	7-35	1157	2.3	38	>10million	>1million	S 1/2"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-0500N-38-S3P-000-B	10-50	661	2.4	38	>10million	>1million	S 1/2"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-0800N-38-S3P-000-B	20-80	440	2.5	38	>10million	>1million	S 1/2"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-1300N-38-S3P-000-B	30-130	245	4.2	38	>10million	>1million	S 1/2"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-2000N-38-S4P-000-B	50-200	173	4.4	38	>10million	>1million	S 3/4"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-0200N-38-S2P-030-B	4-20	1749	2.9	38	>10million	>1million	S 3/8"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-0350N-38-S3P-050-B	7-35	1157	2.9	38	>10million	>1million	S 1/2"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-0500N-38-S3P-050-B	10-50	661	3.0	38	>10million	>1million	S 1/2"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-0800N-38-S3P-050-B	20-80	440	3.1	38	>10million	>1million	S 1/2"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-1300N-38-S3P-050-B	30-130	245	5.5	38	>10million	>1million	S 1/2"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-2000N-38-S4P-050-B	50-200	245	5.5	38	>10million	>1million	S 3/4"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-0900N-70-S3P-000-B	18-90	-	-	-	>10million	>1million	S 1/2"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-1400N-70-S4P-000-B	34-140	-	-	-	>10million	>1million	S 3/4"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-2100N-70-S4P-000-B	42-210	-	-	-	>10million	>1million	S 3/4"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-3150N-70-S4P-000-B	60-315	-	-	-	>10million	>1million	S 3/4"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CSH-4800N-70-S4P-000-B	96-480	-	-	-	>10million	>1million	S 3/4"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle

Angle Transducer Tightening Screw Driver

	Model	Max Torque Nm	Max Speed rpm	Weight kg	Grip diameter mm	Design Life	MTTF	Bit quick connector	Starting mode	Screw driver controller	Screwdriver cable

TTD	PTT-DAH-0080N-42-S2P-000-B	1.6-8	900	1	42	>10million	>1million	S 3/8"	Pushed /Remote	Enhanced version OPT-CCK-010-TD1-B1-750W Standard version OPT-SCS-003-TD1-B1-500W OPT-SCS-007-TD1-B1-500W	Enhanced version 5m/10m Optional Standard version 5m
	PTT-DAH-0120N-42-S2P-000-B	2.4-12	560	1.1	42	>10million	>1million	S 3/8"	Pushed /Remote	Enhanced version OPT-CCK-010-TD1-B1-750W Standard version OPT-SCS-003-TD1-B1-500W OPT-SCS-007-TD1-B1-500W	Enhanced version 5m/10m Optional Standard version 5m
	PTT-DAH-0020N-42-S2P-000-B	4-20	414	1.3	42	>10million	>1million	S 3/8"	Pushed /Remote	Enhanced version OPT-CCK-010-TD1-B1-750W Standard version OPT-SCS-003-TD1-B1-500W OPT-SCS-007-TD1-B1-500W	Enhanced version 5m/10m Optional Standard version 5m

	Model	Max Torque Nm	Max Speed rpm	Weight kg	Grip diameter mm	Design Life	MTTF	Bit quick connector	Starting mode	Screw driver controller	Screwdriver cable

TTC	PTT-CAH-0200N-38-S2P-000-B	5-20	1630	2.8	38	>10million	>1million	S 3/8"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CAH-0300N-38-S2P-000-B	6-30	1114	2.8	38	>10million	>1million	S 3/8"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CAH-0500N-38-S2P-000-B	10-50	730	3	38	>10million	>1million	S 3/8"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CAH-0800N-38-S3P-000-B	20-80	420	3.1	38	>10million	>1million	S 1/2"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
	PTT-CAH-1300N-38-S3P-000-B	30-120	280	4.7	38	>10million	>1million	S 1/2"	Pushed /Remote	OPT-CCK-010-TC1-B1-1000W	5m/10m/15m/20mOptional Straight /Angle
