Handheld Tightening Module

Torque Range: 0.6~12Nm

The integrated handheld tightening module can be used with torque arms to achieve automatic screw tightening at manual operation stations, eliminating the need for operators to handle screws. When combined with a smart electric torque screwdriver, it allows for tracking the number of screws and tightening results.

Request a Quote

Product Advantages

Structural integration

? The structure is compact,the gas-electricity layout is simple, and the structure is convenient to be installed and fixed with the force arm;

Collaborative high quality

? The replacement of the nozzle is more convenient, and the nozzle sleeve part can be replaced after being disassembled;

? Automatic screw blowing, no need for manual screw removal;

More convenient to use

? Comfortable grip feeling;

? The tightening pressure is adjusted in the form of air pressure, and the reaction force is small;

Safer handling

? The suction screw is stable and can be tightened to avoid interference;

? Combined with Intelligent Screw Driver and force arm, it can realize the control of tightening quantity, tightening sequence and tightening quality in the production process

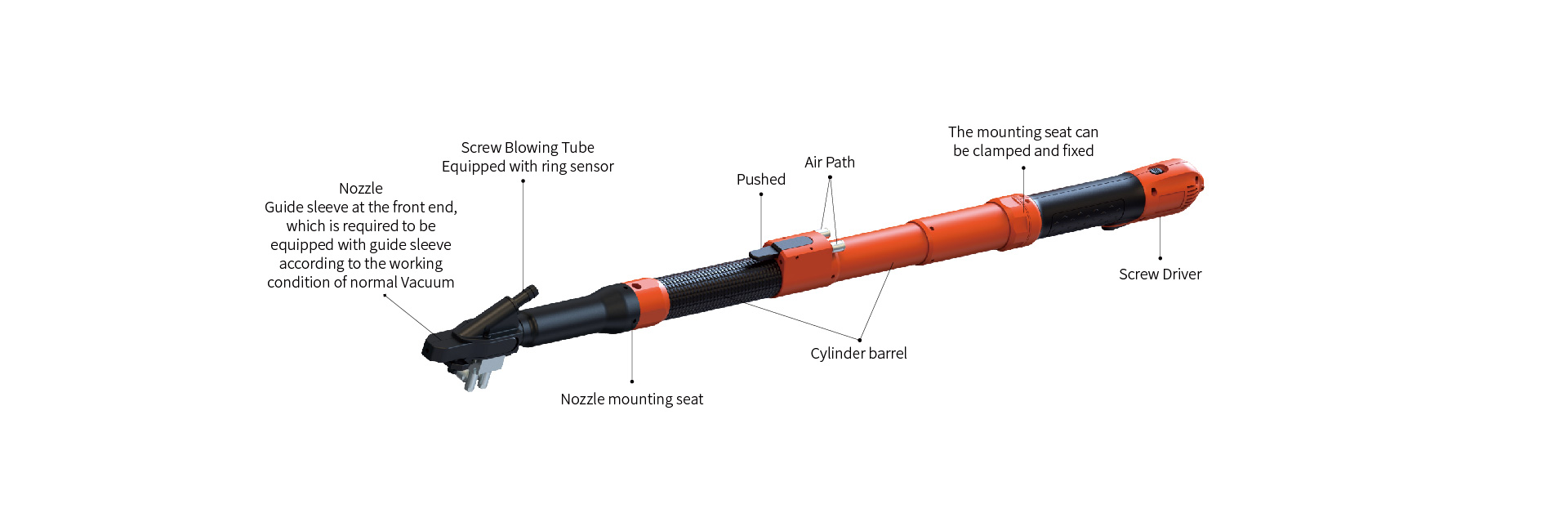

Product Structure

Product Parameters

Module type	Torque range	Type of working condi t ion	Stroke of vacuum tube
Blow Screw -Handheld	0.6~6Nm	Semi-automatic or manual station; Can meet different product working condition.	L30/50mm
Normal Vacuum- Handheld	1~12Nm		H60/H100mm

Releated Cases

New Energy Vehicle Industry

Integrate clean feeding technology, intelligent tightening technology, <br/>digital and intelligent software system to accompany every step of <br/>intelligent assembly upgrade of new energy vehicle industry.

Automotive?Industry

It covers the assembly application scenarios of various parts and components, and drives the intelligent assembly of automobile manufacturing industry to achieve high-quality and high-efficiency development.

Energy?Storage?Industry

Focus on the innovation of automatic feeding and intelligent tightening technology to ensure the safety and stability of energy storage products.

Communications?Industry

Through automatic assembly equipment, reduce manual intervention, ensure the accuracy of production and assembly, and improve the quality and efficiency of production and assembly of communication products.

3C?Electronics?Industry

Focus on building a "flexible intelligence +" technology innovation system to promote the intelligent transformation and upgrading of 3C electronic assembly.
